Installation Guide

⚠️ SAFETY WARNING & DISCLAIMER

  • Turn Off Power: Always shut off the main power at the circuit breaker before beginning any installation.
  • Professional Installation Recommended: For your safety, we highly recommend hiring a licensed and certified electrician to install all ceiling fans and chandeliers.
  • Weight Capacity: Ensure the ceiling outlet box and support structure can handle the weight of your specific fixture (Chandeliers can be extremely heavy).

Before You Begin

  1. Unpack your product carefully and check the parts list to ensure no components are missing or damaged during transit.
  2. Prepare the required tools: Ladder, Voltage Tester, Screwdriver, Wire Strippers, Electrical Tape, and Safety Glasses.

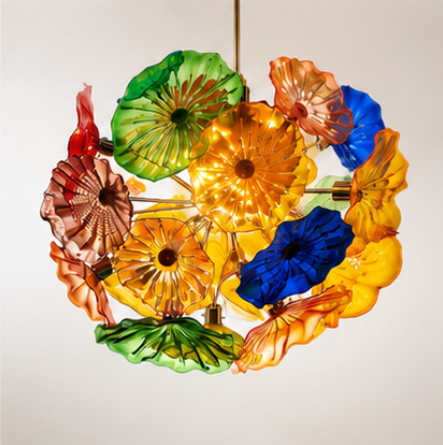

🛠️ How to Install Our Chandeliers

Step 1: Remove the Old Fixture (if applicable)

* Remove the existing light fixture cover
* Unscrew and carefully lower the fixture
* Use a voltage tester to confirm no electricity is flowing
* Disconnect the wires

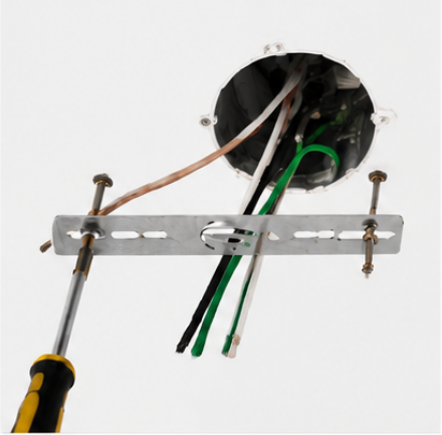

Step 2: Install the Mounting Bracket

* Attach the metal mounting bracket to the electrical box in the ceiling
* Ensure it is firmly secured and can support the chandelier’s weight
* Tighten all screws properly

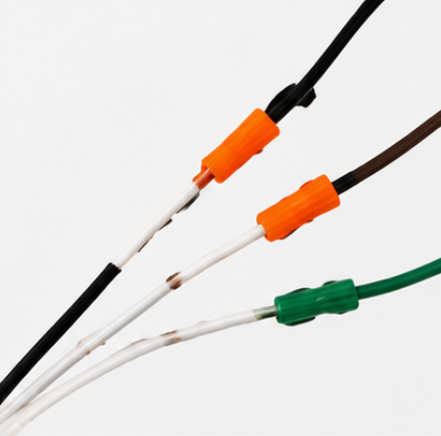

Step 3: Connect the Wires

Wiring Connection: Connect the wires (Black to Live/Hot, White to Neutral, Green/Bare to Ground).
* Strip about 1 cm of insulation from each wire
* Twist matching wires together
* Secure with wire nuts
* Wrap connections with electrical tape for safety

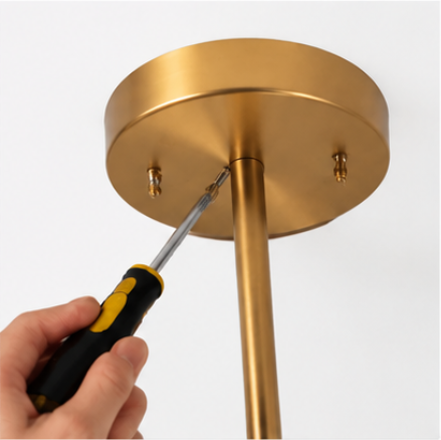

Step 4: Mount the Chandelier

* Carefully lift the chandelier and align it with the mounting bracket
* Secure it using the provided screws or canopy cover
* Ensure it is stable and does not wobble

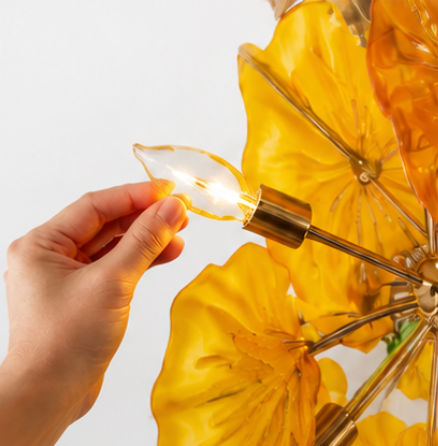

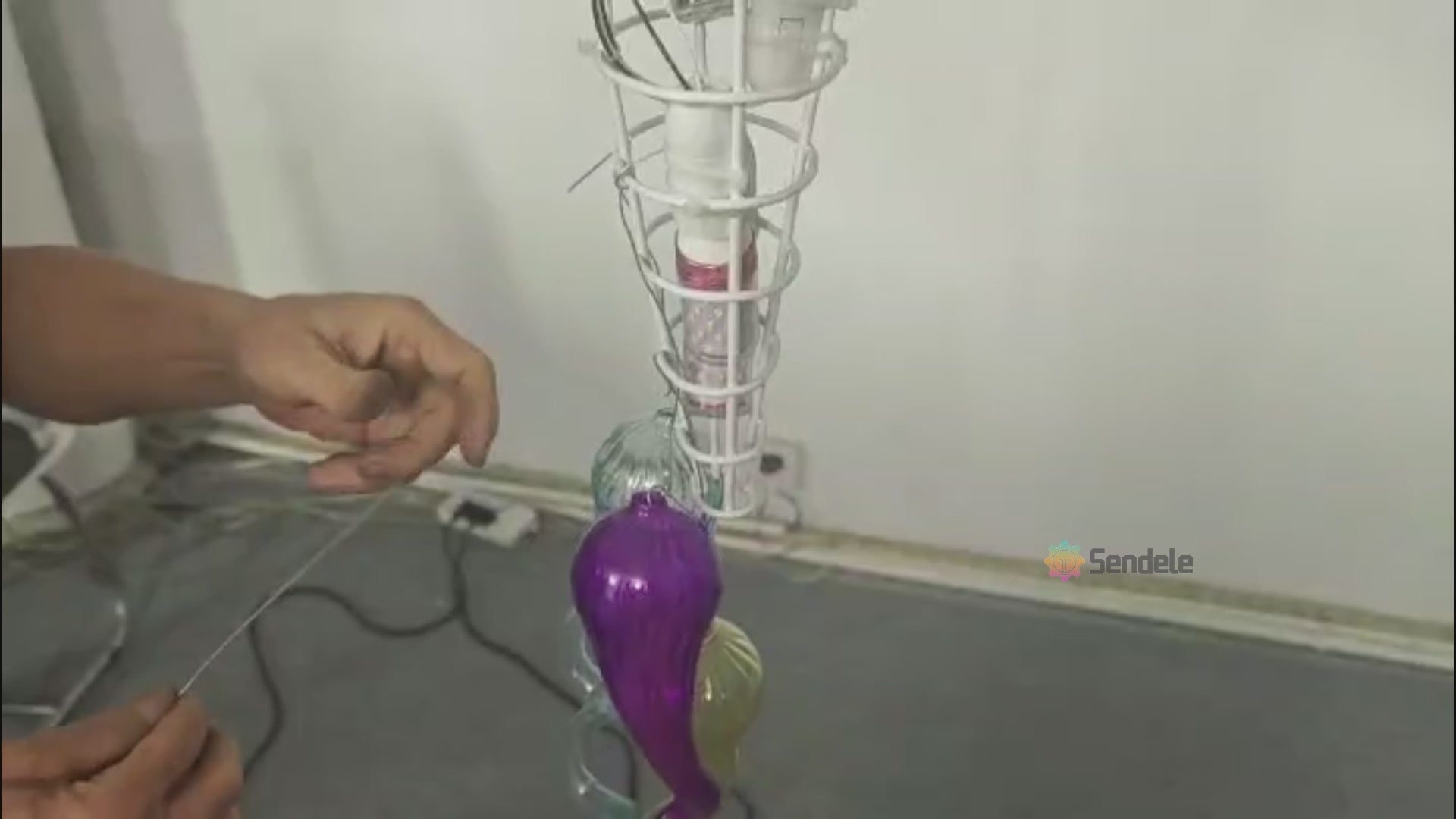

Step 6: Install Bulbs and Decorative Parts

* Screw in compatible light bulbs

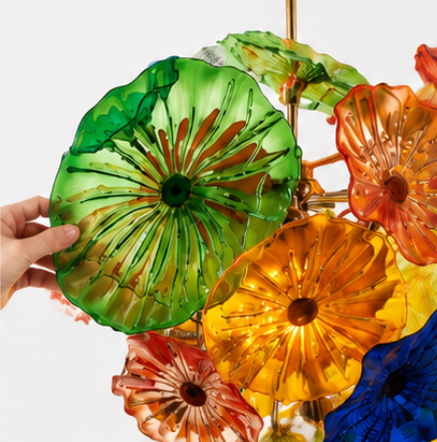

* Attach any glass pieces or decorative elements carefully
* Avoid overtightening fragile parts

Step 7: Test Installation

* Restore power at the circuit breaker
* Turn on the wall switch
* Check if the chandelier lights up properly
* If it does not work, turn off power and recheck wiring

🌀 How to Install Our Ceiling Fan Lights

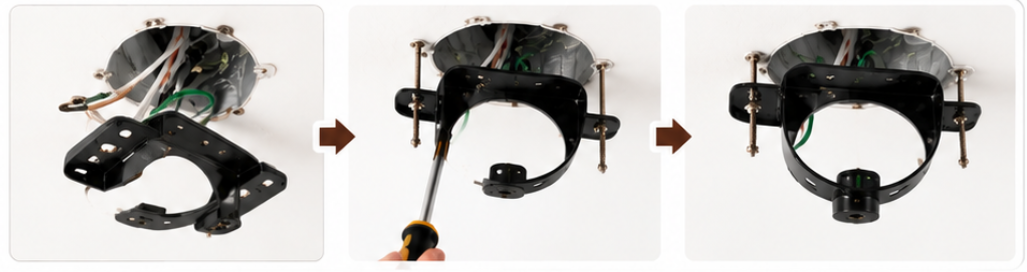

Step 1: Hanger Bracket:

Install the mounting bracket firmly to a ceiling box rated for fan support.

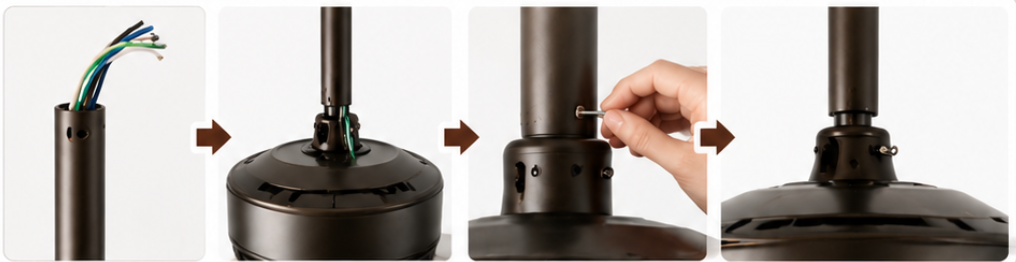

Step 2: Downrod & Motor Assembly

Feed the wires through the downrod, insert the rod into the motor canopy, and lock it with the pin.

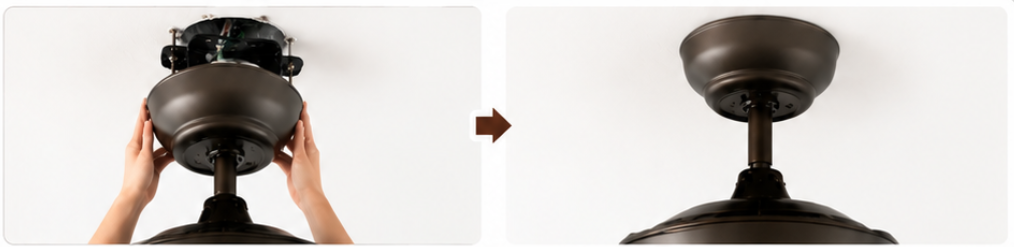

Step 3: Hanging the Fan

Lift the fan assembly into the hanger bracket slot.

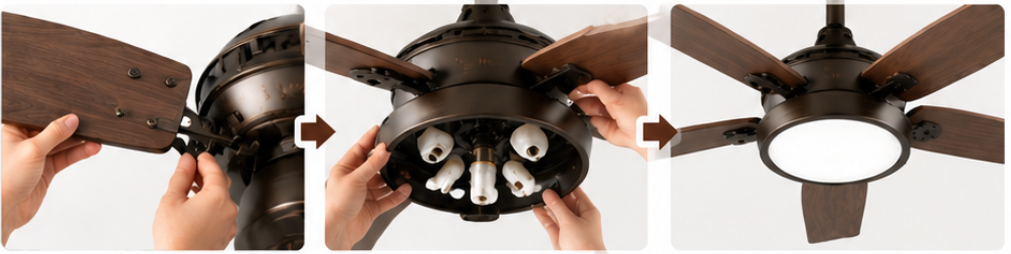

Step 4: Blades & Light Kit

Attach the fan blades to the motor, then connect and secure the light kit assembly.

Troubleshooting & Support

❓ Need Help?

If you encounter any issues during installation (e.g., fan wobbling, remote not pairing, or humming noise), please contact our expert support team immediately.

Email: support@rhledlamp.com

Phone: +1 (626) 586-1195

Support Hours: Mon to Fri, 9AM-6PM PT
